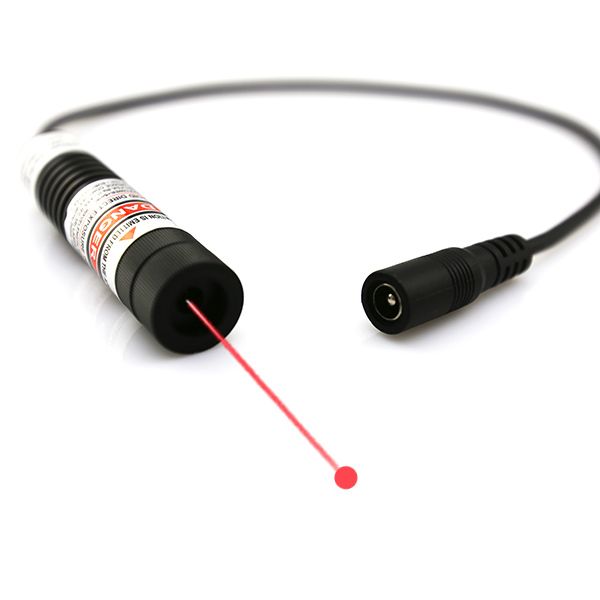

In those of industrial dot positioning work fields, on consideration of high level of accuracy and highly bright dot indication onto different working surfaces, it makes an efficient job to make good use of a high purity light emitted tool of a 635nm red laser diode module. Employed by an import 635nm red laser diode and a qualified glass coated lens inside a durable metal housing tube, connected with an external electric power source and basic use of thermal emitting system design, 635nm red dot laser enables high energy density red light emission at long extending distance, and converts into increasing accuracy and bright red reference dot projection onto multiple working surfaces.
In various industrial dot positioning works, 635nm red laser diode module is projecting a highly visible red dot as an optical reference point to quickly align workpieces, tools, or assembly lines, achieving non-contact, precise positioning. It adopts an AC/DC adapter as its electric power source, not spending extra time on alkaline battery power source, it just makes constant red laser beam and red reference dot projection continuously. Usually red laser dot projection is intuitively visible, eliminating the need for operators to repeatedly measure with tools like rulers and calipers. Alignment can be determined in seconds, significantly reducing process setup time.
When 635nm red laser diode module keeps work with high transmittance and high energy density red laser beam emission directly from an import 635nm red laser diode within 5mW to 500mW, equipped with a qualified glass coated lens in front of beam aperture, it always makes highly clear and precise red reference dot projection at various work distances and multiple lighting occasions. When it gets quite low laser beam divergence of less than 1mard and special TEM00 laser beam mode, whatever working surface it is pointing, this 635nm red dot laser alignment generates ultra compact size and highly bright red reference dot projection.
Equipped with intelligent feedback controlled APC, ACC driving circuit board design, no matter long time time and whatever output power it is selected, 635nm red laser diode module keeps work with minimal red laser beam spot drift of less than 0.1mm per meter, and is unaffected by environmental factors such as mechanical vibration and oil contamination. Positioning errors can be controlled within 0.1-0.5mm. It operates stably in a wide industrial temperature range of -20°C to 60°C. Its red light has superior penetration to other visible light sources, ensuring the red dot remains clear even in normal workshop lighting or lightly dusty environments.
General applications in industrial dot positioning fields:
Machining Positioning: For example, on milling machines and lathes, the red alignment laser dot marks the center point of the cut/drill hole to be cut, helping the tool quickly align with the workpiece reference point to avoid misaligned cuts.
Production Line Material Alignment: In food and pharmaceutical packaging lines, the red dot locates the sealing line and label placement of packaging boxes, ensuring consistent packaging positioning for each batch.
Automated Equipment Calibration: Before an industrial robotic arm grasps a workpiece, the red laser diode module can mark the grip center point, assisting the robotic arm in precise positioning. Alternatively, the red dot can be used to correct conveyor belt deviation, serving as a reference line to determine if the material has shifted.
Welding Positioning: When welding steel structures and automotive parts, the red laser dot marks the weld starting point and path reference, preventing workpiece scrap caused by deviation.
