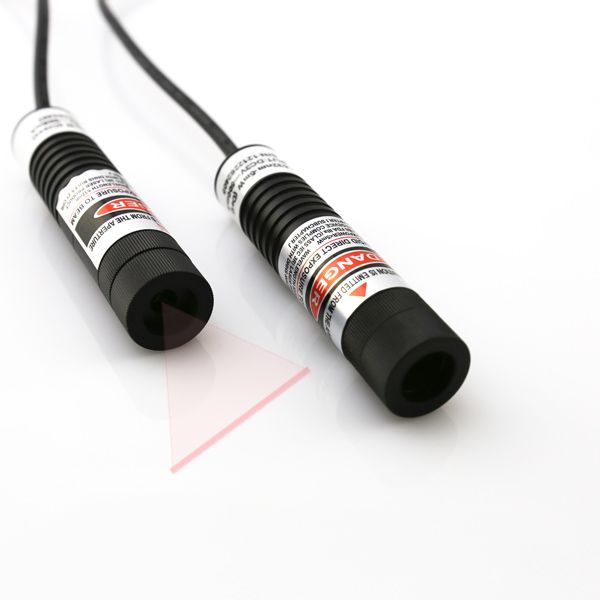

What is a good job to make ultra clear and fine line indication in those of industrial processing works? Especially in occasion of night version illumination work fields, those of factory workers and engineers would prefer to operate a long wavelength made device of a 808nm infrared laser line generator. It always projects invisible and intense infrared laser light source, and converts into ultra fine and straight infrared reference line with different line lengths. In practical precise machinery processing works, when infrared laser module gets correct use of output power and optic lens fan angle, after its proper equipment with night version device or equipment, it enables easy reaching, good direction and highly precise infrared reference line projection at various work distances conveniently.
Usually 808nm infrared laser line generator emits invisible infrared laser beam from a long wavelength 808nm infrared laser diode, which should only be equipped with infrared receiving equipment for observation. This avoids interference from strong light on the operator’s vision, making it suitable for strong light industrial environments. When it gets wide range output power of 5mW to 500mW and 600mW to 1000mW, cooperated with 5V, 9V or 12V 1000mA AC/DC adapter and internal metal heat sink cooling system design inside a durable anodized aluminum alloy housing tube, this infrared line laser module gets superior nice heat dissipation, ultra stable and clear infrared reference line projection as long as 10 hours per day. It enables stable and clear infrared line projection within wide range operating temperature, bears vibration, adapted to the complex operating conditions of workshop processing equipment and exhibiting strong stability.
Usually 808nm infrared laser line generator applies a qualified glass coated lens within 10 to 110 degree fan angles, it enables high linear quality and highly straight infrared reference line projection, achieving high line straightness of ±0.1mm/m, meeting the alignment requirements of precision machining. Under operation of correct use of output power and optic lens fan angle, and freely adjusted infrared reference line thickness and line emitting direction, infrared line laser module allows quick response and noncontact IR line projection continuously. It also assures low power consumption and low production cost.
Instead of spending extra time on prior line drawing or printing, infrared laser line alignment work can avoid manual operating error, significantly reducing component scrap rates, and increasing finished product qualification rates. When 808nm infrared laser line generator adopts compact size structure design, it can be flexibly adapted to various various processing equipment and production line layouts, resulting in low maintenance costs. When it is linked with CNC equipment, robotic arms, and other automated devices, infrared alignment laser is supporting signal-controlled start/stop, seamlessly integrating into intelligent industrial processing systems.
General applications in industrial processing works:
Metal Processing Auxiliary Positioning: Adapted for laser cutting, CNC milling and turning, and sheet metal bending, used for pre-marking the contours and cutting paths of metal parts to aid in precise alignment.
Non-metallic Material Processing Calibration: In wood carving and cutting, acrylic cutting, and fabric cutting, marking processing boundaries and baselines to prevent processing deviations.
Automated Production Line Processing Guidance: Working with automated equipment (robotic arms, conveyor lines), providing straight-line baselines for component assembly and welding, surface coating positioning, and precision grinding, ensuring process consistency.
Mold Processing Assistance: In mold cavity processing and polishing, marking baseline surfaces and processing areas to assist workers in calibrating processing accuracy.
